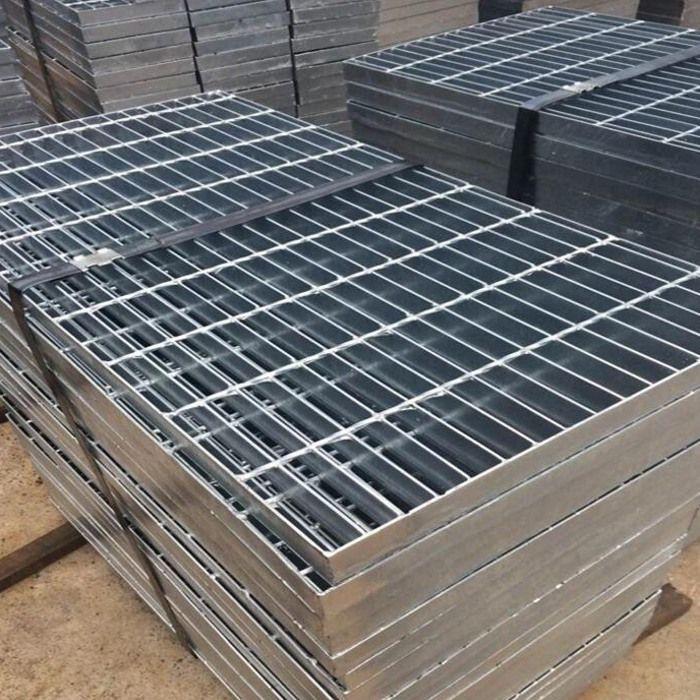

Galvanized Trench Covers

Galvanized trench covers are steel grating panels used over drainage channels, then hot dip or electro galvanized to resist rust. They are common in outdoor municipal projects, coastal areas, and chemical plants.

Send Inquiry

We start with Galvanized Trench Covers made from load‑bearing bars and cross rods. The material is typically low‑carbon steel (grade Q235) or, for extra strength, HRB400E. After welding, the whole panel goes through galvanizing – either hot‑dip (thicker zinc layer, better for outdoors) or electro‑galvanizing (smoother finish, for indoor or light duty). The zinc coating protects against acid, alkali, and salt spray, so the covers last much longer than plain black steel. A city park in Zhoushan, right on the coast, replaced their uncoated covers every two years because of rust. With our hot‑dip galvanized covers, they have not changed any in five years.

Parameters

Material	Q235 low‑carbon steel or HRB400E rebar steel
Bar thickness	3–5 mm, height 20–40 mm
Mesh opening	rectangular or square, 100–400 mm (custom)
Panel size	width 0.5–3.0 m, length 1–12 m
Zinc coating	hot‑dip (≥85 µm) or electro‑galvanized (≥12 µm)

Advantages

The galvanized trench covers do not rust even when standing in water for weeks. The welded joints are strong – we test tensile strength on every batch. For a chemical plant in Guangdong, we supplied covers with extra‑thick hot‑dip zinc to handle acid drips. After three years, no pitting or peeling. The surface also looks clean and uniform, which matters for commercial plazas or pedestrian areas.

Customization

We cut panels to your exact trench dimensions. Hole shape can be rectangular or square, opening size from 100 to 400 mm. Special sizes or load ratings available. CAD drawings provided. Sample policy: if we have stock, we send free sample; you pay courier. Sample cost refunded on first order.
