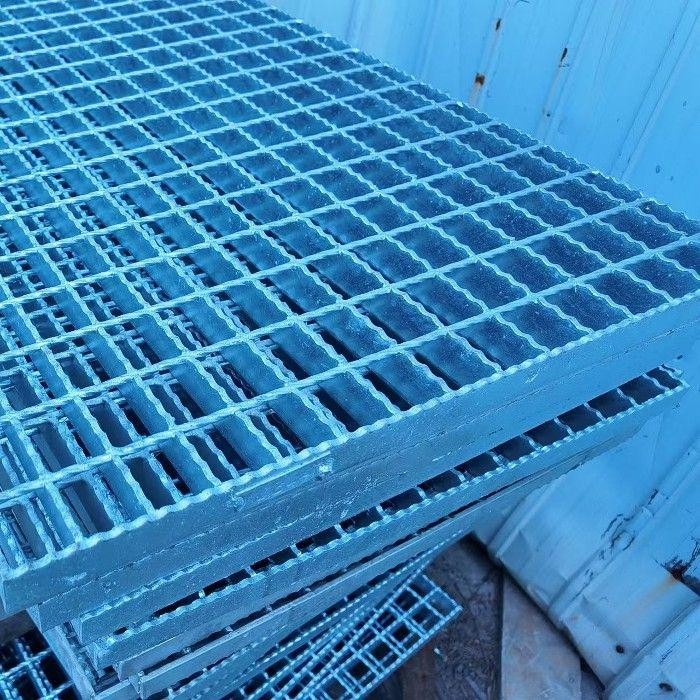

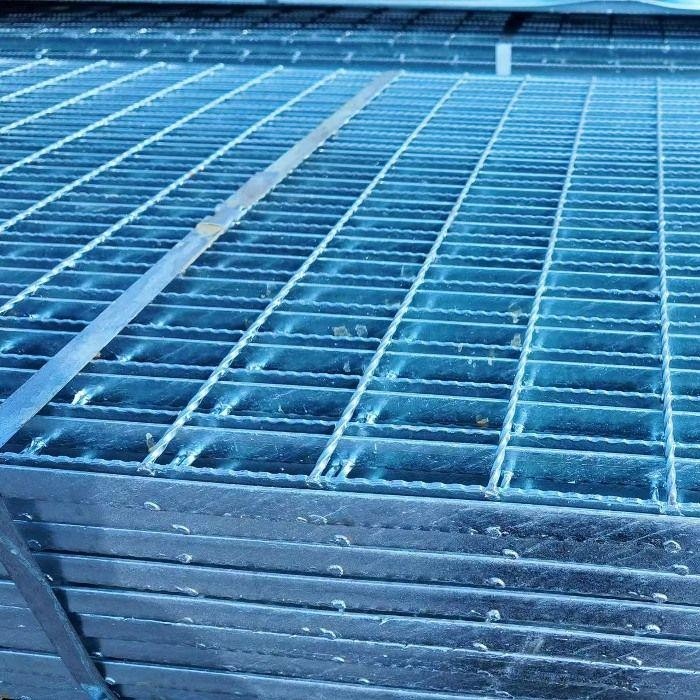

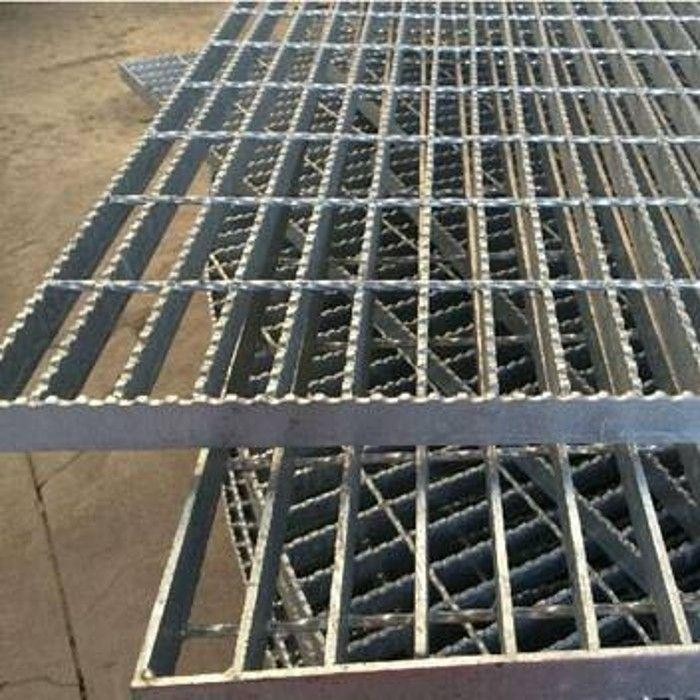

Serrated Steel Grating

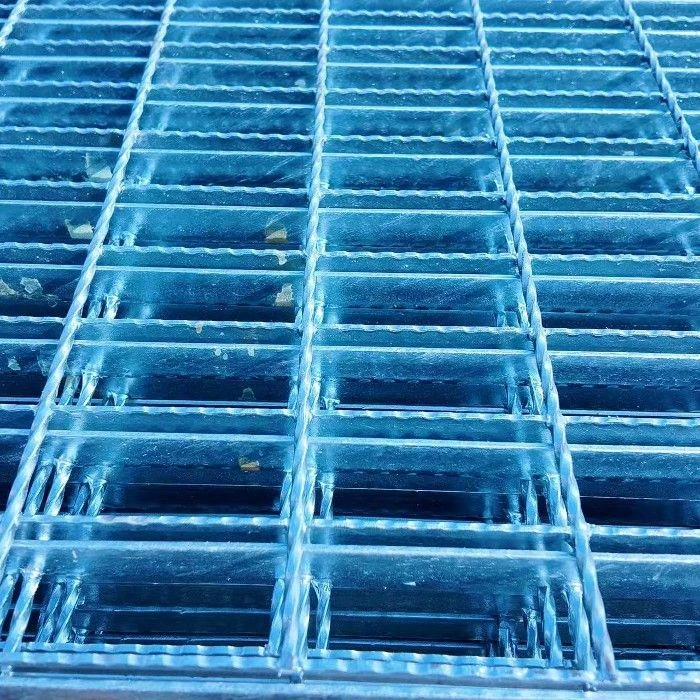

Serrated trench covers are steel grating panels with a saw‑tooth pattern on the bearing bars. This texture gives them much better grip than flat bars, so people are less likely to slip when the surface is wet, icy, or oily.

Send Inquiry

We start with Serrated Trench Covers welded or press‑locked steel grating, then roll a serrated profile onto the top of each bearing bar. The teeth run across the bar, not along it, so you get grip in both directions. A wastewater plant in Shanghai installed these on their outdoor walkways three years ago. Before that, they had two or three slip accidents every winter. Since switching to serrated covers, they have had none. The grating still holds heavy loads – the teeth do not weaken the bar. You can order them in carbon steel (hot‑dip galvanized for outdoor use), Serrated Trench Covers, or even aluminum.

Common Specifications

Item	Specification
Bearing bar spacing	Standard 1‑3/16″ (30 mm) center‑to‑center; optional: 15/16″, 11/16″, 1/2″, 7/16″
Bar depth	3/4″ to 7″ (20–180 mm)
Bar thickness	1/8″ to 1/2″ (3–12 mm)
Panel size	Width up to 2.2 m, length up to 5.8 m; custom cutting per drawing available
Serrated teeth	typically 1.5 mm deep, spaced 2–3 mm apart

Product Advantages

Safer than plain grating on wet or frozen surfaces.

Same load capacity as standard grating – no trade‑off.

Less steel needed than a solid plate, so lighter and cheaper.

Quick to install: panels come pre‑cut to your trench width.

We make custom sizes from your drawing, no extra fuss.

Surface Treatment & Materials

Hot‑dip galvanized:	Best for outdoors, roads, docks.
Electro‑galvanized:	Okay for indoor or dry areas.
Stainless steel (304 or 316):	For coastal or chemical plants.
PVC coating:	Adds color and extra chemical resistance.
