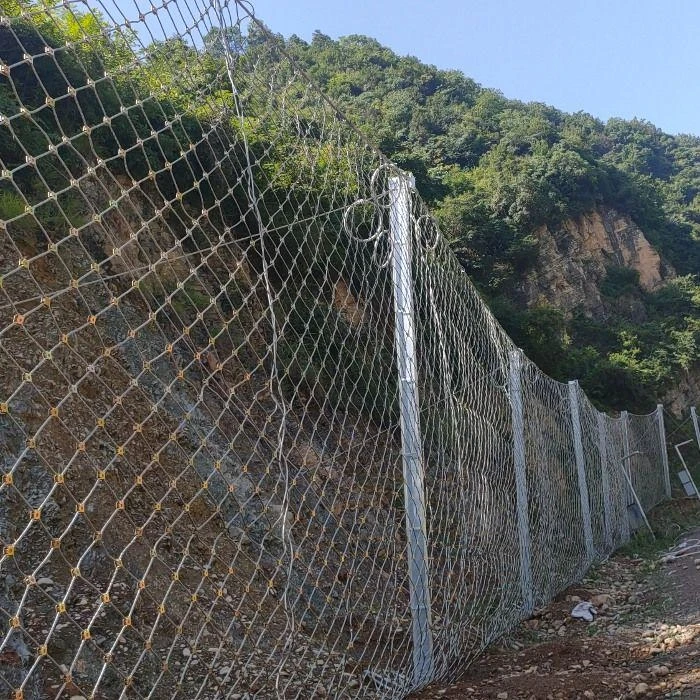

Passive rockfall protection structures operate on a professional flexible energy absorption principle. The entire system is designed to absorb and disperse the full impact energy of falling rocks through the coordinated cooperation of steel columns, wire rope mesh, anchoring structures and dedicated energy dissipation units. These products adapt perfectly to all types of complex, steep and rugged slope terrains. Installation causes minimal disturbance to the original slope foundation without compromising the overall stability of the mountain, while fully preserving the natural vegetation and local ecological environment.
Product Parameters
|
Model |
Mesh Type |
Full Structure Configuration |
Main Protection Function |
|
RX-025 |
D0/08/250 |
Steel column + support rope + anchoring system + lacing wire + energy dissipater |
Intercept falling rocks with impact energy ≤250kJ |
|
RX-050 |
D0/08/200 |
Same as RX-025 |
Intercept falling rocks with impact energy ≤250kJ |
|
RX-075 |
D0/08/150 |
Same as RX-025 |
Intercept falling rocks with impact energy ≤250kJ |
|
RXI-025 |
R5/3/300 |
Steel column + support rope + anchoring system + lacing wire |
Same as RX-025 |
|
RXI-050 |
R7/3/300 |
Same as RXI-025 |
Same as RX-050 |
|
RXI-075 |
R7/3/300 |
Same as RX-025 |
Same as RX-075 |
|
RXI-100 |
R9/3/300 |
Same as RX-025 |
Intercept falling rocks with impact energy ≤1000kJ |
|
RXI-150 |
R12/3/300 |
Same as RX-025 |
Intercept falling rocks with impact energy ≤1500kJ |
|
RXI-200 |
R19/3/300 |
Same as RX-025 |
Intercept falling rocks with impact energy ≤2000kJ |
Product Applications
Our Passive rockfall protection structure is widely applied in mountain highways, railways, mines, scenic spots, hydropower stations, municipal construction, debris flow control and geotechnical slope engineering. It reliably intercepts rolling rocks, dangerous boulders and debris flow, and provides long-term stable safety protection for traffic, buildings, personnel and property at slope bottoms.
Frequently Asked Questions (FAQ)
Q: How long is the service life of your passive protection net?
A: Our standard hot-dip galvanized products have an anti-corrosion lifespan of over 30 years, and can reach 30–60 years with daily regular maintenance.
Q: Can you customize products for our project site?
A: Yes absolutely. We provide full one-stop customized service, including mesh size, net height, anchor length, steel column specification and special anti-corrosion treatment to perfectly match your actual slope and project requirements.
